35M Telescopic Excavator Boom Arm Q355B for 20-50Ton Excavators

Place of Origin : Guangdong, China

Brand Name : ZH

Certification : CE

MOQ : 1

Price : $10,000

Material : Q355B, BS900E

Thickness : 6mm

Max Depth : 10000-30000mm

Effective Length : 7600-25100mm

Bucket Capacity : 0.2-2.5cbm

Excavator Weight : 6-50ton

Telescopic Sections : 3

Boom Length : 12-35m

High-pressure Hoses : 2

Pins : 2

Clamshell Bucket : 1

Foot Switch : Two-way

Steel Type : Q355B, Q690D

Slope Cutting : 45-degree

Lifetime Increase : 30% longer

Contact Now

Q355B Q690D materials 12-35 meter telescopic excavator excavator long arm telescopic boom excavator for 20-50ton

35M Telescopic Excavator Boom Arm Q355B for 20-50Ton Excavators

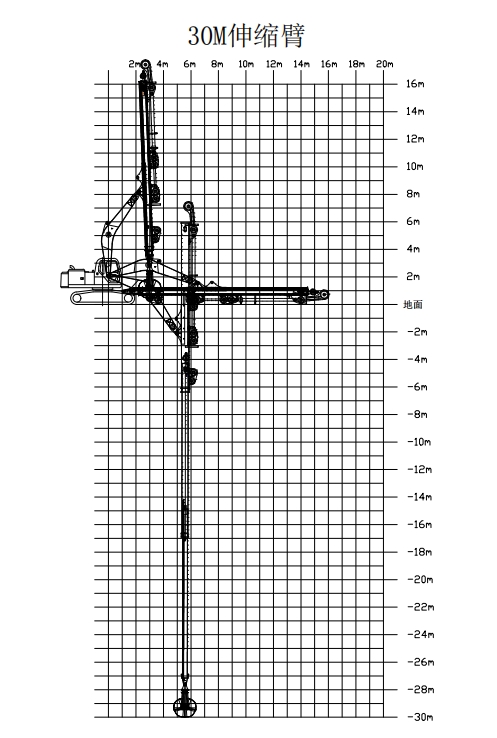

Excavator (ton)	Max Depth (mm)	Effective Length (mm)	Bucket Capacity (cbm)
6-10	10000	7600	0.2-0.3
11-15	14000	10500	0.4-0.6
20-30	16000	12500	0.8-1.5
30-35	20000	15500	1.3-1.66
30-35	25000	20500	1-1.4
40-45	25000	20500	1.8-2.5
40-45	3000	25100	1.4-2

What is an excavator telescopic arm

This product mainly consists of a fixed body, sliding body, steel wire rope and a telescopic cylinder. By changing the number of sliding bodies, an ideal working radius and vertical excavation range can be achieved. Generally used in combination with a bucket, it can complete deep pit excavation tasks, such as grabbing soil, sand or coal.

The three-section telescopic boom is made of BS900E, and other parts are made of Q355B, which is lighter and more durable. We use 6mm thickness.

Three Section Telescopic Arm Configuration

1. A set of telescopic arm

2. Two high-pressure hoses

3. Two pins

4. One clamshell bucket

5. One two-way foot switch

Some installation instructions for telescopic arms

Excavator Telescopic Boom

Related Product Recommendation

ZHONGHE triple quality control system

The first system is the technical design drawing review mechanism,

The second system is the semi-finished product review mechanism,

(each process has a detection testing for the previous process)

The third system is the finished product testing.

(Before painting, the overall inspection is carried out to check whether the design size matches the welding size, and whether the installation size meets the design requirement.)

To sum up, every single ZHONGHE product has been passed the above three-stage inspection system to ensure that is qualified before shipping.

CE certification & Utility model patent certificates

Shipping And Packaging
Our products have been sold to more than 60 countries, and our transportation methods include sea transportation, land transportation, and air transportation. Our packaging is wooden box packaging or stretch film packaging. The goods will be packed before shipment and then loaded into the container to ensure the safety of the goods.

Q: Are you a manufacturer? A: Zhonghe machinery offered a wide range of attachment parts for excavators and dozers. Such as long reach arm, demolition arm, telescopic arm, standard bucket, rock bucket, cleaning bucket, tilting bucket, etc. We know that the perfect combination of high-quality cast steel products and a moderate price is the key to the success. Q: Why choose Zhonghe over any other companies? A: We have a professional production team and design team to provide each customer with high-quality and personalized customer service to ensure correctness, so we have good reputation in China, and our annual sales are among the best in our country. Q: What can I get from you? A: 1. The product is made of Q355B steel, a superior and sturdy material on the market, and the steel is cut with a 45-degree slope and then gas welded, making it more sturdy and 30% longer lifetime than normal materials. 2. All accessories are included, no additional purchases are required. Professional online video guides installation to make installation worry-free. 3. Lifetime free online customer service consultation if you have any questions. Q: How do I start to order? A: Firstly, talk to our sales about your machine model, working conditions, special needs and deadline. Then our sales will give you proposals FYR. You will receive a quotation ASAP after confirming the proposal. Q: What are your terms of payment? A: We prefer T/T (50/50) through Ali Credit Insurance as a trial order. Q: Are you always delivered on time? A: We can't promise about the sea freight but what we can do is shorten our lead time while keeping the same quality level. So there will not be any problem even if the sea freight is delayed for a couple of days.
