20-50ton Excavator Telescopic Arm for Deep Excavation Q355B+BS900

Place of Origin : Guangdong, China

Brand Name : ZH

Certification : CE

MOQ : 1

Price : $10,000

Weight : 5000

Suitable Excavator : 20-50ton

Material : Q355B+BS900

Max Depth : 10000-30000mm

Effective Length : 7600-25100mm

Bucket Capacity : 0.2-2.5cbm

Telescopic Sections : 3

Slider Material : Nylon

Pulley Material : Steel

Hose Lubrication : Central

Rope Design : Double

Steel Thickness : 6mm

Max Reach : 12-32m

Construction Material : LG700+Q355B

Core Components : Engine, Bearing

Contact Now

20-50ton Excavator Telescopic Arm for Deep Excavation Q355B+BS900

Product Description-------Excavator Telescopic Boom

What is an excavator telescopic arm? This product mainly consists of a fixed body, sliding body, steel wire rope and a telescopic cylinder. By changing thenumber of sliding bodies, an ideal working radius and vertical excavation range can be achieved. Generally used in combination with a bucket, it can complete deep pit excavation tasks, such as grabbing soil, sand or coal.

What are your advantages?

Advantages of telescopic arms:

1.The three-section telescopic boom is made of BS900E, and Q355B, which is lighter and more durable.
2. We use 6mm thickness.
3. The slider is made of nylon and the pulley is made of steel.All hoses are centrally lubricated.
4. The external hose pulley of the bucket cylinder is more convenient for hose replacement and repair.
5. The external hose pulley separates the hose from the main rope.Avoid friction between the main rope and the hose, reduce failures.
6. The double rope design ensures the safety of the telescopic arm. Even if the main rope is broken, the arm will not stretch.

Some common size references

Excavator (ton)	Max Depth (mm)	Effective Length (mm)	Bucket Capacity (cbm)
6-10	10000	7600	0.2-0.3
11-15	14000	10500	0.4-0.6
20-30	16000	12500	0.8-1.5
30-35	20000	15500	1.3-1.66
30-35	25000	20500	1-1.4
40-45	25000	20500	1.8-2.5
40-45	3000	25100	1.4-2

Our designs allow for interchangeable use of digging buckets and grab buckets.

The first one is clamshell bucket ,usually use for Subway deep digging project .

The second one is the grab bucket , compare to the clamshell bucket , the grab bucket have power ,can grab the stone.

The last is the standard bucket , use for telescopic boom the bucket need do the special design .

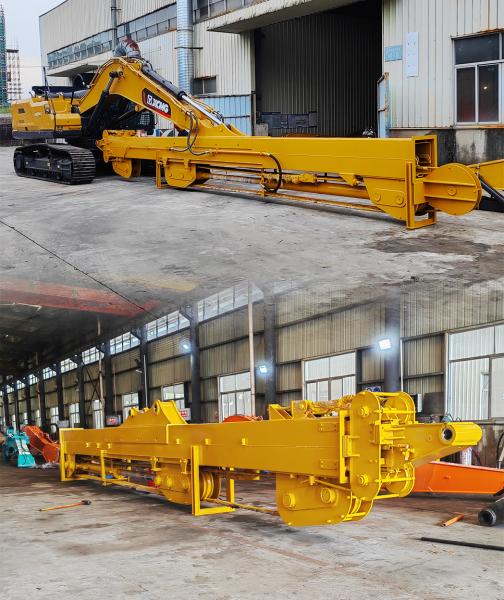

Some pictures of excavator telescopic arm

Kaiping Zhonghe Machinery Manufacturing Co., Ltd

Established in 2018, Kaiping Zhonghe Machinery Manufacturing Co., Ltd. is a combination of manufacturing and trading, specializing in customizing different kinds of excavator boom arms and attachments. Our products, including excavator long reach booms, demolition arms, 2-3 sections telescopic arms, tunnel arms, standard/rock buckets, grapples, and rippers, have been selling well in more than 60 countries and areas.

We are located in Cuishanhu New District, Kaiping City, Jiangmen City, GuangdongProvince, China, and we boast a 18000m2 steel structure workshop with a large number of high precision processing equipment and a strong and cohesive team of over 100 experienced technical staff, 50,welding workers with over 7 years experience, 30 senior designers, and a high-tech R&D team(10+ years on customization,100+ technical patents).strict production system (6+ years quality control and cost control) and warm-heart service team. Our annual output of various types of excavator boom arms can reach up to 600 sets. Kaiping Zhonghe Machinery Manufacturing Co., Ltd, are committed to providing our customers with products of the highest quality at a moderate price, with quick response and appropriate warranty. We strive to uphold our core principles of "Merit Quality,Sincerity Management,and Customer Satisfaction".

CE certification & Utility model patent certificates

Shipping And Packaging
Our products have been sold to more than 60 countries, and our transportation methods include sea transportation, land transportation, and air transportation. Our packaging is wooden box packaging or stretch film packaging. The goods will be packed before shipment and then loaded into the container to ensure the safety of the goods.

FAQ

1. How does the Excavator Telescopic Boom work?
The Telescopic Boom works by using hydraulic systems to extend and retract the arm, giving your excavator extra reach and versatility. It allows you to perform tasks like digging, lifting, and demolition at greater distances without moving the excavator.

2. What is the maximum reach of your Telescopic Booms?
Our excavator Telescopic Booms are available in various lengths, with maximum reach options ranging from 12 meters to over 32 meters, depending on your specific needs. We also offer custom solutions for special requirements.

3. Can the Telescopic Boom be customized to fit my excavator model?
Yes, we offer customized Telescopic Booms designed to fit your specific excavator model. Our expert team will work with you to ensure a perfect fit and optimal performance.

4. What materials are used in the construction of the Telescopic Boom?
Our Excavator Telescopic Booms are made from LG700+Q355B high-quality, heavy-duty steel, which provides strength and durability to withstand tough working conditions. We use advanced welding and fabrication techniques to ensure the boom’s longevity.
